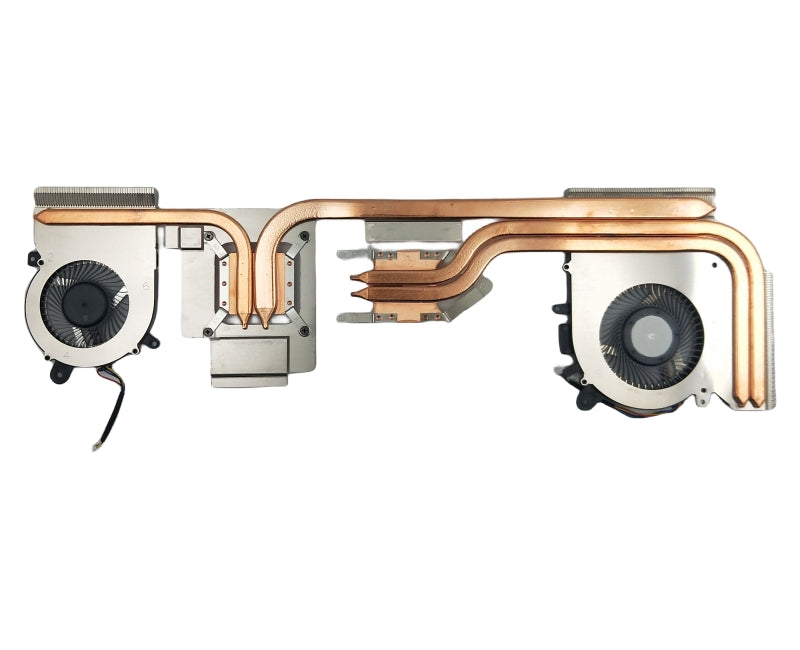

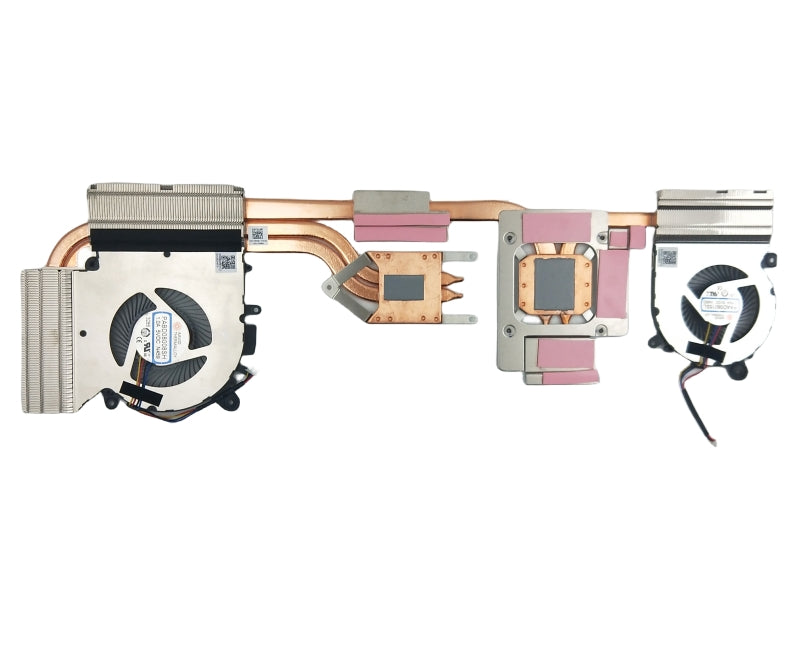

Verified Compatibility: MSI COOLER (E32-2500861-F05)
Review the technical specifications below before ordering. Need help confirming compatibility? Please contact us with your device model and the part number from your existing adapter.
Technical Specifications
Spec table
MECH FANSINK MECH FANSINK
H/S DIM. 367.55*109.47*13.18mm
MATERIAL AL+CU
START/RATED VOLTAGE 2.5V/5V
RATED CURRENT 0.65A/0.36A
POWER 3.25W/1.8W
RPM 4350RPM/4200RPM
NOISE 50dB/46dB
CONNECT PIN/PITCH 4P/
Excerpt of suitable series Sword 17 A11UC(MS-17L2)
Sword 17 A11UD(MS-17L2)
Sword 17 A11SC(MS-17L2)
Pulse GL76 11UDK(MS-17L2)
Pulse GL76 11UCK(MS-17L2)
WF76 11UJ(MS-17L2)
WF76 11UI(MS-17L2)
Crosshair 17 A11UCK(MS-17L2)
Crosshair 17 A11UDK(MS-17L2)
Katana GF76 11UD(MS-17L2)
Katana GF76 11UC(MS-17L2)
Katana GF76 11SC(MS-17L2)
Katana GF76 11UCX(MS-17L2)
Sword 17 A11UCX(MS-17L2)
Katana 17 B11UCX(MS-17L2)
Katana GF76 11UCK(MS-17L2)
Frequently Asked Questions
How do I confirm this adapter is compatible with my device?
Match the output voltage, wattage, connector size, and your device model with the specifications above. If you are unsure, contact us with your device model and a photo of the label on your existing adapter.
Can I use an adapter with a higher wattage?
A higher wattage can be suitable only when the voltage and connector are an exact match. Please confirm all specifications before ordering.
What is included in the package?
Please refer to the package-includes lines in the technical specifications above. The plug and power cord configuration may vary by product and destination.
What should I do if I ordered the wrong item?
Please contact us before installation with your order number and device details. Our team will help confirm the correct replacement part and advise on the next steps.
